In een rolvormproduct kunnen ook gaten worden geponst. Deze gaten worden gemaakt in een ponsmachine. Dit kan middels een start-stop methode of indien mogelijk met behulp van een roterende ponsmethode.

Start-stop methodes worden het meest toegepast in combinatie met rolvormen. Uitvoeringen met hydraulische cilinders of met een excenter pers zijn veel toegepaste oplossingen. Het grote nadeel van de start-stop methode is de relatief lage productiesnelheid. Tenslotte moet het materiaal tijdens de ponsbeweging stoppen. Dit gebeurt niet bij het roterend ponsen. Hier kunnen de productiesnelheden aanzienlijk opgevoerd worden tot boven de 100 m/min.

In overleg met de eindgebruiker wordt gekeken wat de gunstigste technische- en economische oplossing is.

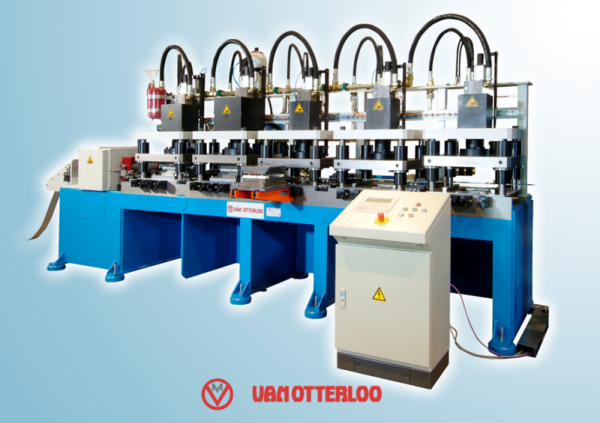

Start-stop ponzen

 punching_st_st_800

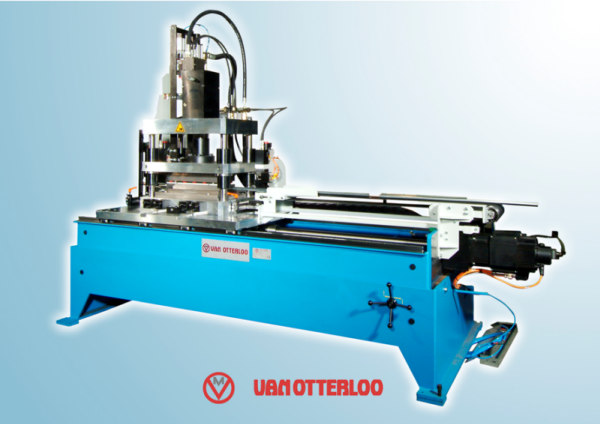

Vliegende ponsunit

 punching_flying_800



Roterende ponsunit

 punching_rotating_800
